Access Panels / DOORS


  • The 4 sizes of access panels provide a broad range of "accessibility options" of fire dampers, coils, filters and controls etc.
  • the SL and L are designed for "torso entry" whereas the M and S for tow-handed and single handed access respectively.
  • As the panels are deep formed they are dimensionally uniform and eliminate air leakage.
  • The design enables fast installation and the plated sash fasteners allow for speedy and simple access.

 Construction


Frame:            0.8mm Glvanised Steel
Panel:           Outer panel 0.8mm and inner panel 0.6mm Galvanised Steel
Insulation:           25mm Fibreglass
Gasket:           Heat welded PVC Extrusion
Fasteners:           Sash type Zinc Plated

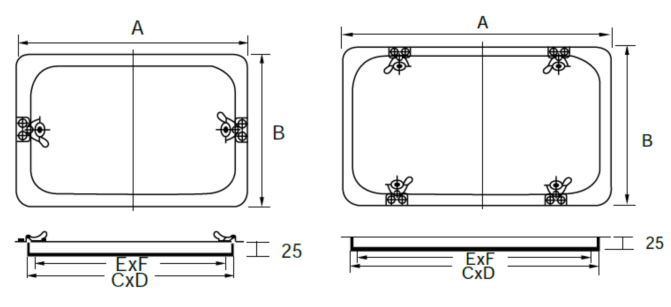

Model      Entry
A x B
Panel/Door
C x D
Over Flange
E x F
Camlock
(Pc)
S      117 x 207 146 x 236 184 x 293 2
M      198 x 332 238 x 370 289 x 425 2
L      325 x 460 364 x 499 418 x 550 4
XL      457 x 608 497 x 649 552 x 700 4


Specifications

AAP insulated access panels shall be supplied and installed for access to all fire dampers etc. mounted within the ductwork.  Doors shall be deep drawn from prime quality galvanised steel and shall incorporate a heat welded tubular PVC gasket mechanically fixed to eliminate air leakage.  Doors shall be removable and selected to match duct sizes.  The maximum size door shall be installed to provide easiest access.<


ACCESS DOORS FOR RECTANGULAR DUCTS



Code  A x B mm C x D mm E x F mm
ISR 250 X 150 290 x 200 240 x 150 205 x 115
ISR 380 X 250 420 x 290 375 x 240 330 x 200
ISR 510 X 380 550 x 420 500 x 370 465 x 330
ISR 660 X 510 700 x 550 350 x 500 610 x 465
