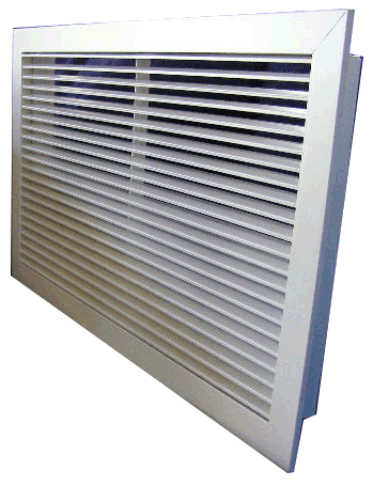

Strip Grilles - SGS

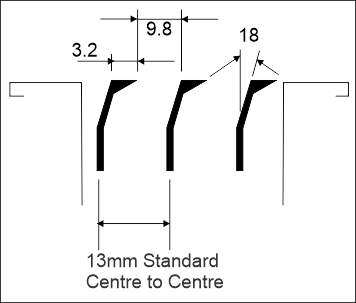

TYPE SGS      (18 DEGREE DEFLECTION):

Strip Grille manufactured of extruded Type 50S anodising grade aluminium with fixed blades. These grilles can be used either vertically or horizontally.

They can be used as Supply or Return Air Grilles and also  for fancoil and induction units, and can incorporate  access flaps.

Accessories OBD
=
Opposed Blade Damper
  PC
=
Punched counter sunk holes
  CF
=
Concealed Fixing
Type SGS 13mm
Frame Options 30mm     Standard
  20mm
  50mm
Finish Options NA
=
Natural Anodised
  EPC
=
Epoxy Powder Coating
Blade Spacings 13mm   Standard
  19mm
  21mm
  26mm

Ordering Procedure: Example
REF
QTY
SIZE (LxH)
TYPE
ACCESS
FRAME
FINISH
SPECIAL INSTRUCTIONS
1
15
900 X 150
SGS13
OBD
20
BEW
OUTSIDE NECK

Note:
(1)  Dimensions given are for opening size into which grille will fit (i.e Normal Duct Size)
(2)  If code "OS" is entered under SPECIAL INSTRUCTIONS, then dimensions given are over flange.
(3)  If 19, 21, 26mm Blade Spacing required, enter under SPECIAL INSTRUCTIONS.

Selection Data

  • Selection data if for 13mm blade spacing
  • Selection data is based on m3/s/metre width.
  • Jet velocity is actual velocity between blades. Average face velocity (25mm from grille) - 65% of jet velocity.Average face velocity (25mm from grille) - 65% of jet velocity
  • Type SGS usually only used for extract.

EXAMPLES (Selection based on 1 meter lengths of grille)

Type SGS - For 0,3 m3/s/metre and 6 metre throw use 150mm wide grille (duct width)

    • Jet velocity - 3m/s
    • Pressure drop - 6N/m2 (Extract or 8N/m2 (supply)

Conversion Factors

  • CFM x 0,000472 = m3
  • FPM x 0,005 = m/s
  • Inches WG x 250 = n/m2
  • INCHES x 25,4 = mm
